Jupyter Notebook / JupyterLab

Jupyter Notebook and JupyterLab are popular integrated development environments (IDEs) widely used by data scientists, researchers, and educators. The editors allow users to write and execute code directly from a web browser, making it an excellent tool for data analysis, scientific computing, and machine learning. Currently, this integration is only available for ActiveState Python projects.

Instructions are provided for

Integrating a single runtime​

The following method of integrating a single runtime with the Jupyter Notebook/JupyterLab is available for Windows, macOS, and Linux.

Before you begin make sure the following requirements have been met

  1. Create a Python project using the ActiveState Platform.
  2. In addition to the other packages needed for your project, include the following
ipykernel
jupyter
jupyterlab
  1. Click Next > Save Changes to build your project

Setting up your IDE​

To launch your editor using your ActiveState runtime as the default interpreter

  1. After your project build is complete, open a terminal and go to your working directory

  2. In your command line create your project directory by running

    • state checkout <orgname>/<projectname>
    • enter into your newly created project folder containing your activestate.yaml file
    • run state shell to open a secure shell virtual environment for the project

  3. Once inside your shell or virtual environment run

    • jupyter notebook to open a Jupyter Notebook instance, or
    • jupyter lab to open a JupyterLab instance

After your Jupyter instance automatically launches in your browser, your ActiveState runtime will be pre-selected as the default interpreter.

Verifying your Jupyter Notebook integration​

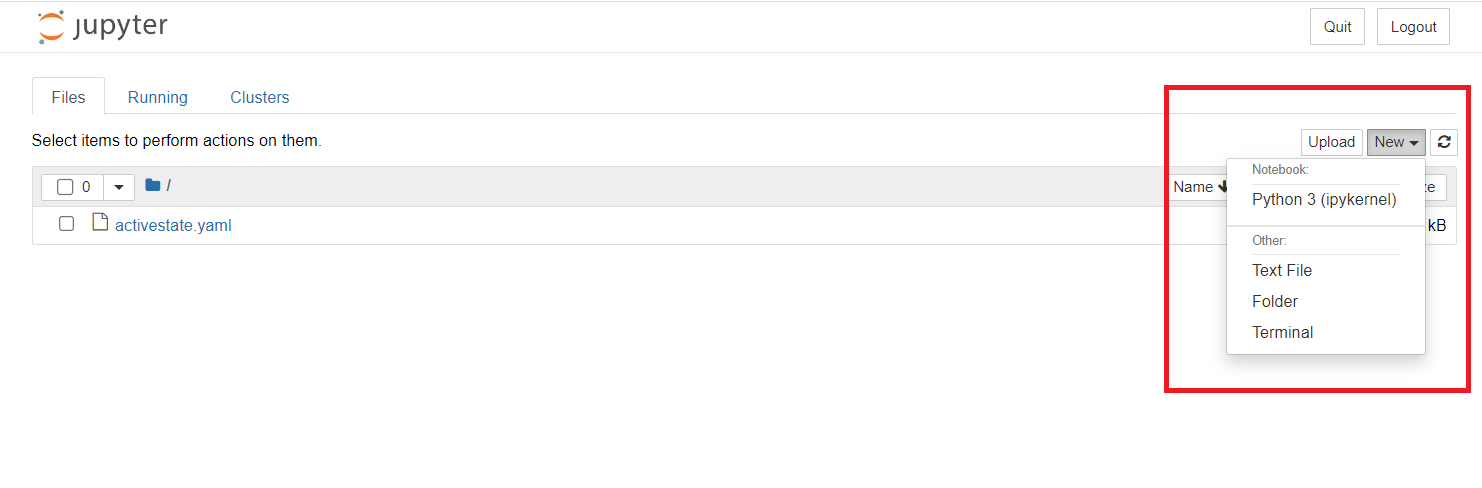

To verify that your ActiveState runtime (or “kernel”) has been successfully integrated into your Jupyter Notebook instance, click on the New dropdown and your ActiveState runtime should be visible, seen below as “Python 3 (ipykernal)”.

alt_text

Verifying your JupyterLab integration​

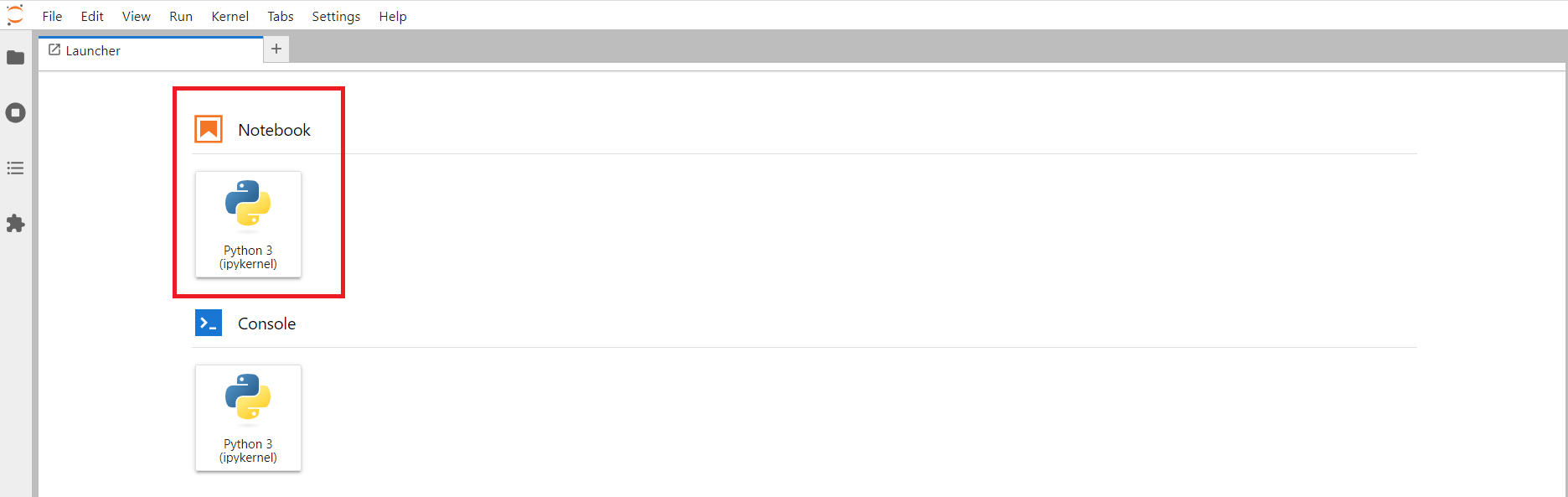

Your ActiveState runtimes will be visible on the Launcher tab.

alt_text

Integrating multiple runtimes​

The following method uses the AS-Notebook tool to sync all existing ActiveState runtimes that have been checked out locally into Jupyter Notebook. Currently, this method is only available to macOS and Linux users.

Before you begin make sure the following requirements have been met

  • The ActiveState StateTool is installed.
  • Your local Jupyter IDE is searching for kernels in the default paths
  • All projects you plan to integrate are checked out locally on your system and have the following packages
ipykernal
jupyter
jupyterlab

Installation​

In your terminal use the following command to check out the ActiveState Platform project AS-Notebook in your local working directory (the project includes a Python runtime as well as a copy of Jupyter Notebook).

state checkout ActiveStateSE/AS-Notebook

This will create a new AS-Notebook folder with the necessary files to complete your sync.

Synching your runtimes with Jupyter​

Go into the newly created AS-Notebook folder and run

state run syncAgent

This will make all State Tool projects that support Jupyter Notebook visible to any local instance of the IDE. After the script has been completed, you will receive a confirmation message stating ActiveState Runtimes In Synch With Jupyter.

alt_text

To start a local instance of Jupyter Notebook enter

state exec jupyter notebook

Verifying your integration​

To verify that your ActiveState runtime (or “kernel”) has been successfully integrated into your Jupyter Notebook instance, click on the New dropdown and your synched ActiveState runtimes should be visible (seen below).

alt_text

Troubleshooting​

If your browser fails to launch after running the jupyter notebook or jupyter lab command

  • check that you are not deploying from a Linux container. To access the Jupyter instance, copy and paste the URL returned in the output of the command into your browser to launch the Jupyter instance.
  • Check that you are using the latest version of Python (3.10.10 or later)

When starting a Jupyter Notebook instance, note that the default python3 ipykernel will be duplicated with the name of the actual runtime (in this case “ActiveStateSE/AS-Notebook-/home/andrewd-activestate/AS-Notebook”).
