API Example Queries

Example Queries

Example 1: Query to return basic information about an ActiveState Project

This example demonstrates using GraphQL variables to create reusable queries.

Open this pre-populated query in the GraphQL console or copy the query below:

query project(
  $organization: String!,
  $project: String!
) {
  project(
    organization: $organization,
    project: $project
  ) {
    ... on Project {
      name
      description
    }
    ... on NotFound {
      message
    }
  }
}

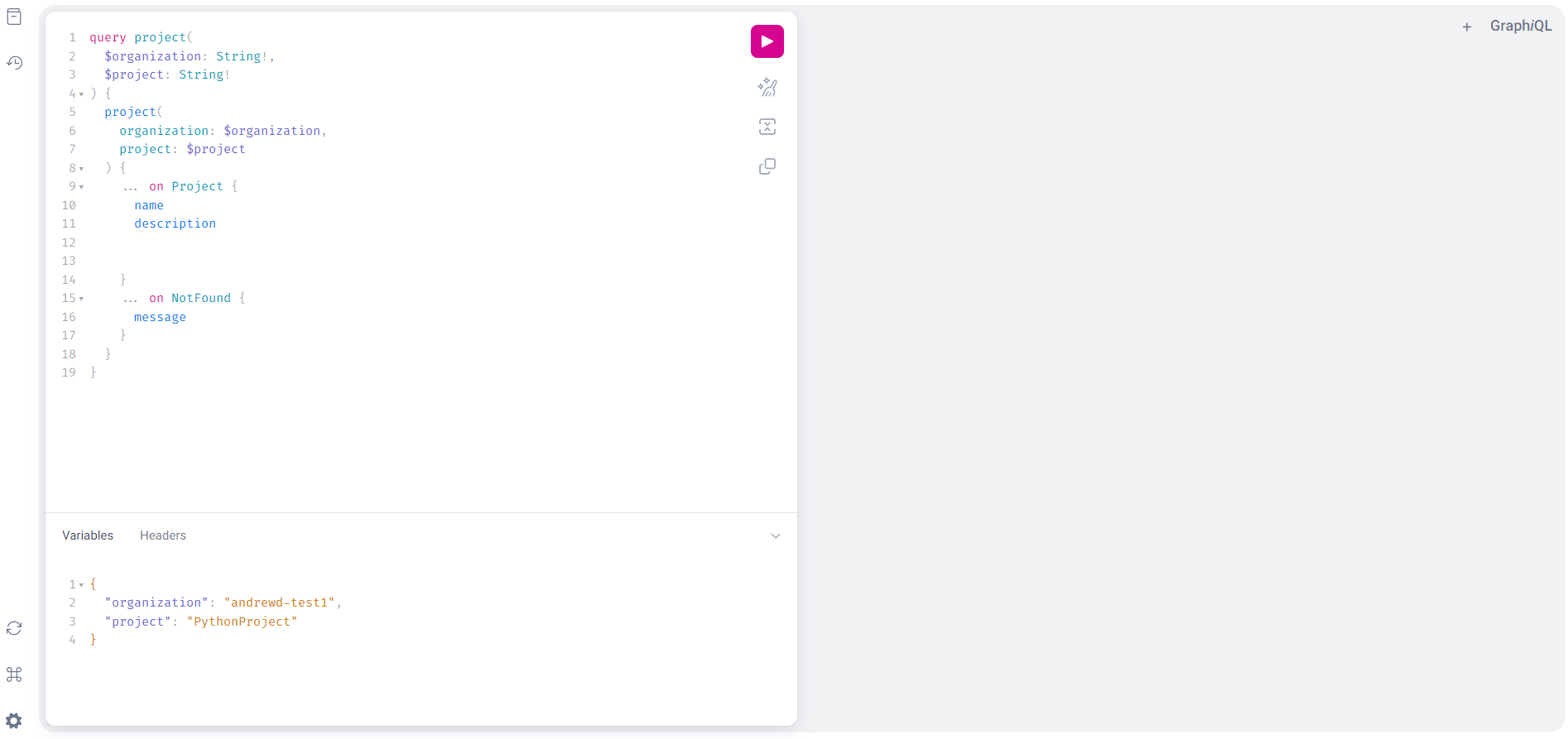

Add the following information into the “variables” section of the GraphQL console as seen in the screenshot further below:

{
  "organization": "activestate-doc-examples",
  "project": "graphql-query-sample-1"
}

alt_text

Execute the query with Ctrl+Enter or click the play button.

Example 2: Query Project Build Expression

This query retrieves the build expression for a specific commit.

query commit {
  commit(commitId: "49a44671-6434-4821-8131-ec6ea7acd029") {
    ... on Commit {
      expr
    }
    ... on NotFound {
      message
      type
    }
  }
}

Open in GraphQL Console

Response:

{
  "data": {
    "commit": {
      "expr": {
        "let": {
          "sources": {
            "solve": {
              "at_time": "2023-11-06T19:15:03.030000Z",
              "platforms": [
                "46a5b48f-226a-4696-9746-ba4d50d661c2",
                "78977bc8-0f32-519d-80f3-9043f059398c",
                "7c998ec2-7491-4e75-be4d-8885800ef5f2"
              ],
              "requirements": [
                {
                  "name": "python",
                  "namespace": "language",
                  "version_requirements": [
                    {
                      "comparator": "eq",
                      "version": "3.10.13"
                    }
                  ]
                },
                {
                  "name": "appdirs",
                  "namespace": "language/python"
                },
                {
                  "name": "flask",
                  "namespace": "language/python"
                },
                {
                  "name": "scipy",
                  "namespace": "language/python"
                }
              ],
              "solver_version": null
            }
          },
          "runtime": {
            "state_tool_artifacts_v1": {
              "src": "$sources",
              "build_flags": []
            }
          },
          "in": "$runtime"
        }
      }
    }
  }
}

Example 2: Query to return a project build expression

query commit {
  commit(commitId: "49a44671-6434-4821-8131-ec6ea7acd029") {
    ... on Commit {
      expr
    }
    ... on NotFound {
      message
      type
    }
  }
}

Open in GraphQL

Response:

{
  "data": {
    "commit": {
      "expr": {
        "let": {
          "sources": {
            "solve": {
              "at_time": "2023-11-06T19:15:03.030000Z",
              "platforms": [
                "46a5b48f-226a-4696-9746-ba4d50d661c2",
                "78977bc8-0f32-519d-80f3-9043f059398c",
                "7c998ec2-7491-4e75-be4d-8885800ef5f2"
              ],
              "requirements": [
                {
                  "name": "python",
                  "namespace": "language",
                  "version_requirements": [
                    {
                      "comparator": "eq",
                      "version": "3.10.13"
                    }
                  ]
                },
                {
                  "name": "appdirs",
                  "namespace": "language/python"
                },
                {
                  "name": "flask",
                  "namespace": "language/python"
                },
                {
                  "name": "scipy",
                  "namespace": "language/python"
                }
              ],
              "solver_version": null
            }
          },
          "runtime": {
            "state_tool_artifacts_v1": {
              "src": "$sources",
              "build_flags": []
            }
          },
          "in": "$runtime"
        }
      }
    }
  }
}

Example 3: Building Queries with GraphiQL Autocomplete

This walkthrough demonstrates using GraphiQL’s autocomplete features to explore the API schema and construct queries.

Navigate to the GraphQL console.

  1. Navigate to https://platform.activestate.com/sv/buildplanner/graphql.

  2. Start with a basic query structure:

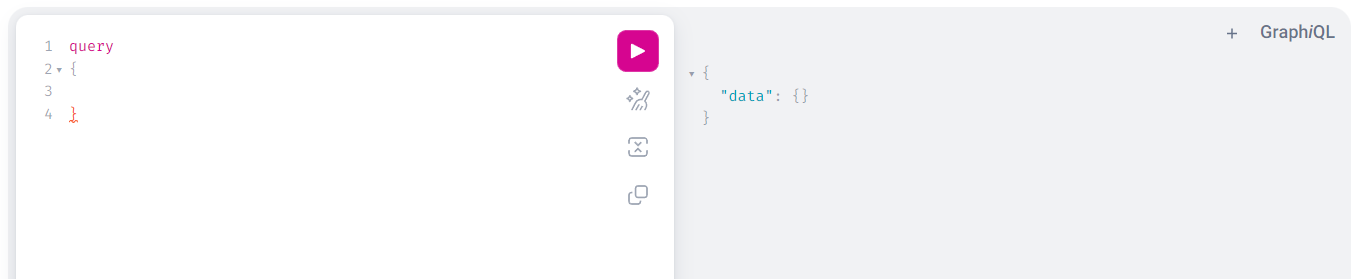

Basic query structure

  1. Use Shift+Spacebar to view available top-level fields:

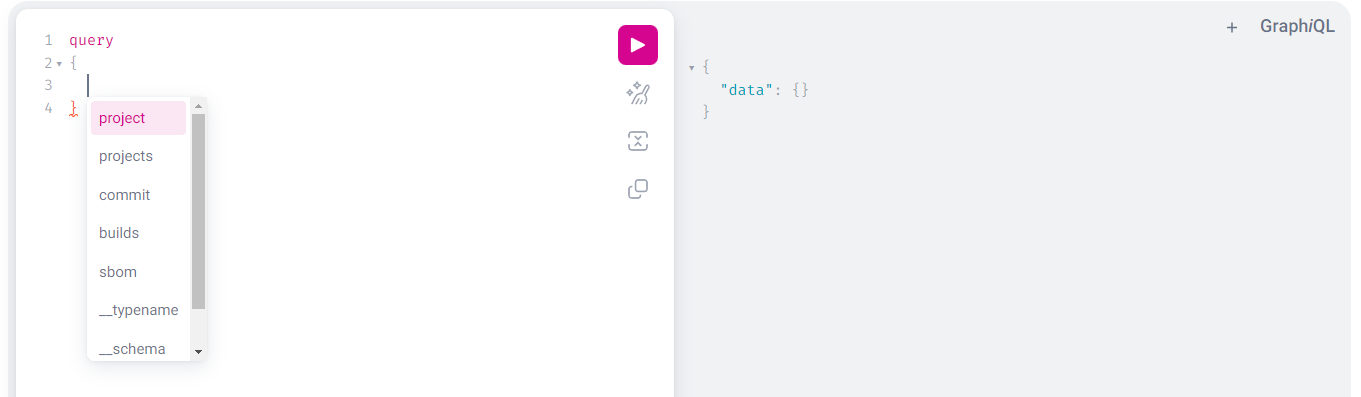

Available fields

  1. Select project. GraphiQL will underline the field to indicate missing required arguments. Hover over the field to view requirements:

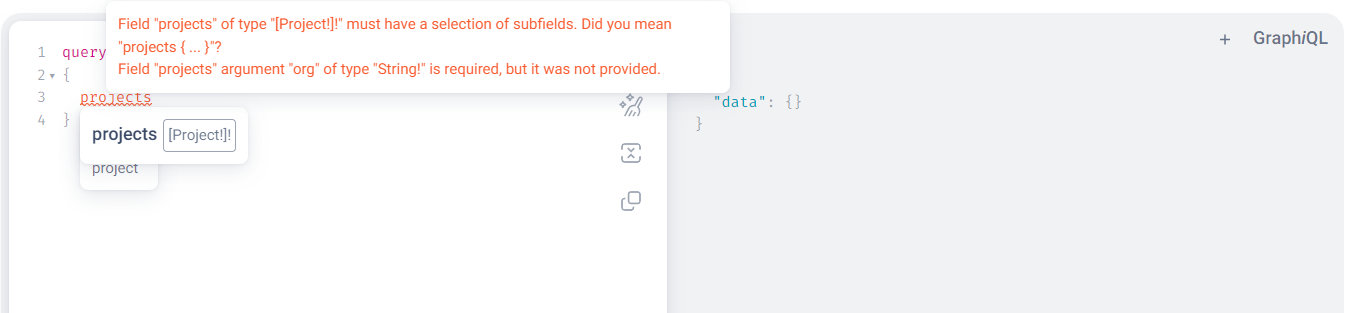

Required arguments

  1. Add the required org and name arguments:
project(org: "ActiveState", name: "ActivePython-3.8")
  1. Add a selection set with inline fragments. Use Shift+Spacebar to explore available fields:

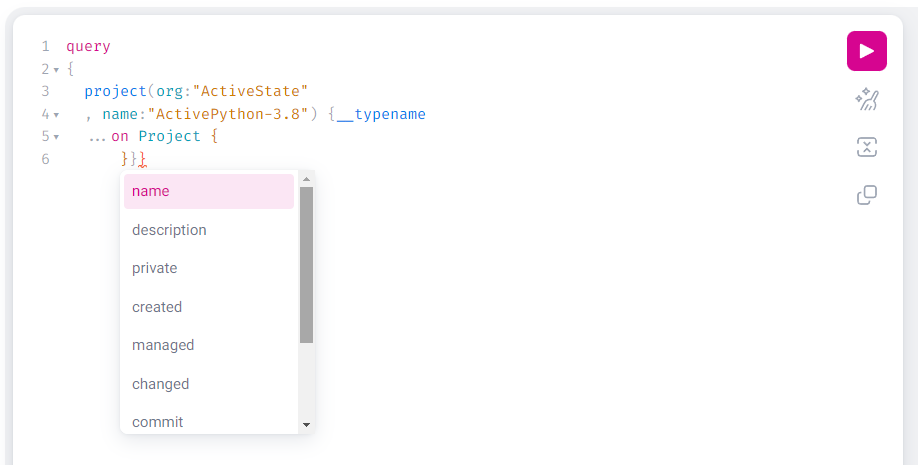

Available project fields

  1. Select fields like description and private to complete your query:

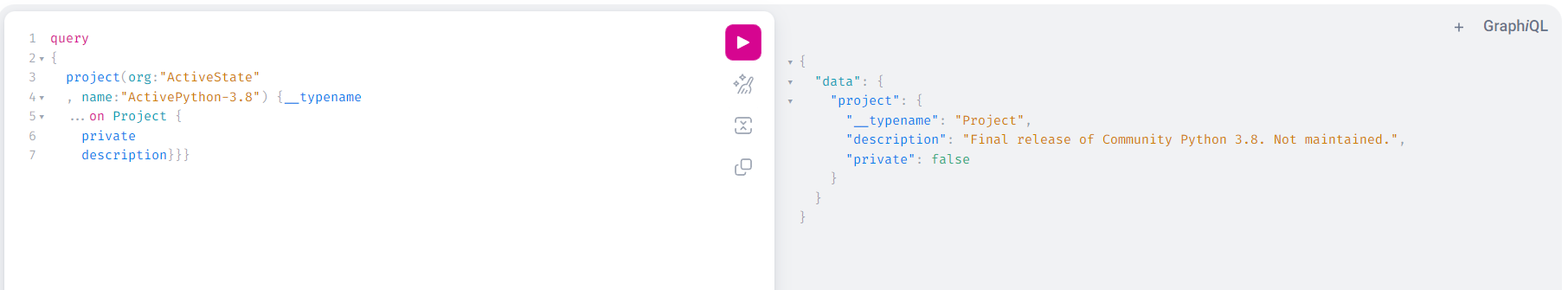

Complete basic query

The response structure mirrors your query structure. In this example, the response includes the project description and privacy status (false indicates a public project).

  1. Extend the query by adding fields like lastEdited, created, and managed:

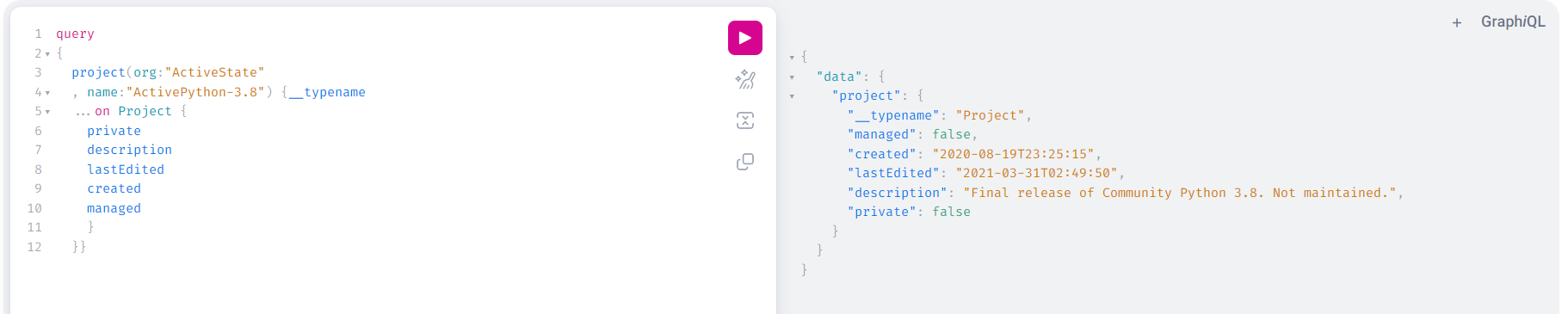

Extended query

Execute queries with Ctrl+Enter or the play button. Access previous queries via the History tab in the left sidebar.
